Double Frame Manual Stackers

Double Frame Manual Stackers Specification

Heres an overview of Double-Frame Manual Stackers what they are, how they are built, their typical specs and uses.

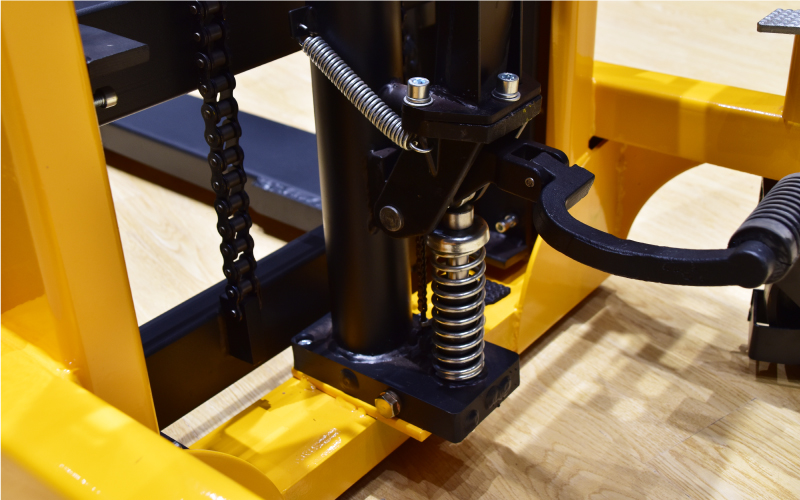

A manual stacker (or hand pallet stacker) is a non-powered material handling tool: you manually push/pull it and use a hydraulic pump (operated by hand or foot) to lift loads. helixengineers.co.in+2plant-mhe.com+2

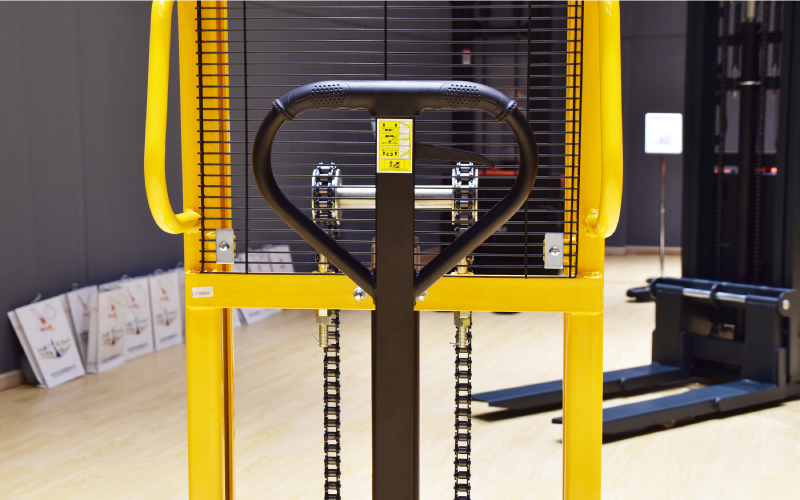

Double-frame (also sometimes double-mast or double-door-frame / C-frame / duplex-mast) refers to a stacker with a double-mast structure two parallel vertical supports rather than a single mast. This design increases stability, especially when lifting loads to higher heights. etwinternational.com+2hf-ec.com+2
Because of the double-mast design, double-frame stackers are especially suitable for higher lifting heights (e.g. up to 23 meters), heavier loads, and operations requiring stability such as stacking pallets in warehouse racks. etwinternational.com+2arasfze.com+2

Depending on make/model, double-frame manual stackers vary, but here are common ranges and features:

From a sample model: etwinternational.com

Spec / Feature	Typical Value / Range
Rated Load Capacity	~ 1000 kg (1 ton) commonly; some models up to 2000 kg (2 ton) depending on design. hf-ec.com+2helixengineers.net+2
Max Lifting Height	Up to ~3000 mm (3 meters) in some models. E.g. one model: 2000 / 2500 / 3000 mm. etwinternational.com
Min Fork Height (lowered)	~ 85100 mm (forks low enough to go under pallets) hzdele.en.made-in-china.com+2solwet.com+2

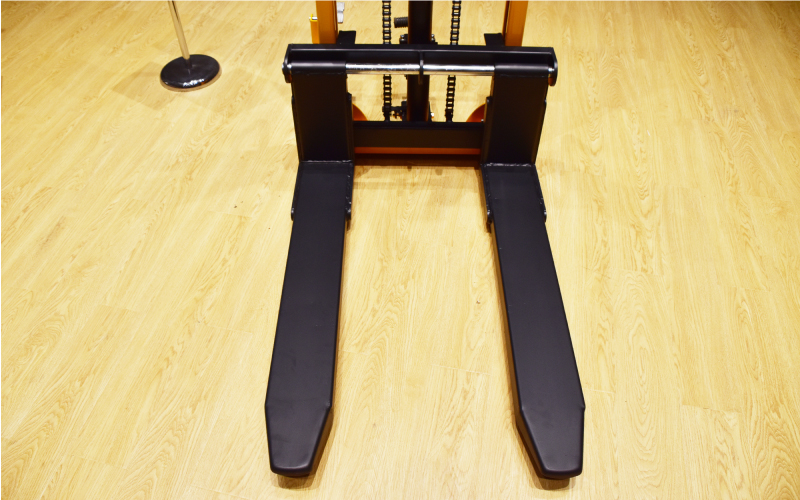

Fork Dimensions	Typical fork length ~ 1150 mm; fork width adjustable to suit pallet width (e.g. from ~320850 mm in the sample model) etwinternational.com+1
Mobility / Wheels	Swivel wheels (PU / nylon) with ball bearings and brakes on rear wheels for safety & controlled movement; suitable for maneuvering in narrow aisles. helixengineers.co.in+2hf-ec.com
