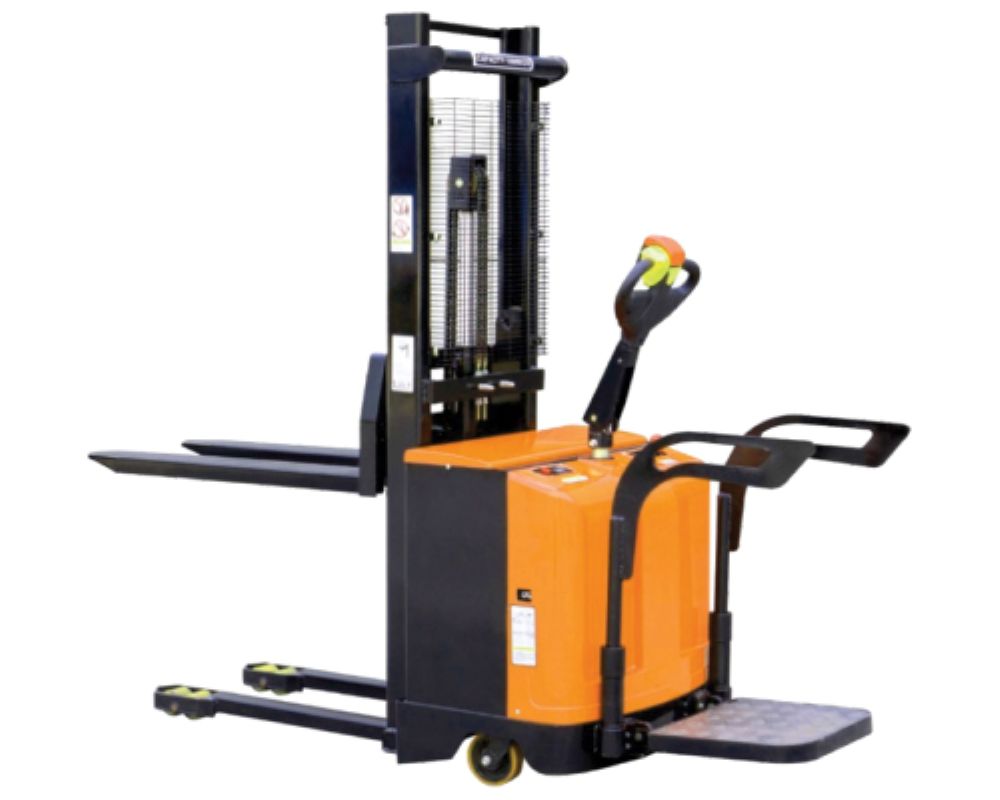

What is a Single-Frame Stand-On Fully Electric Stacker

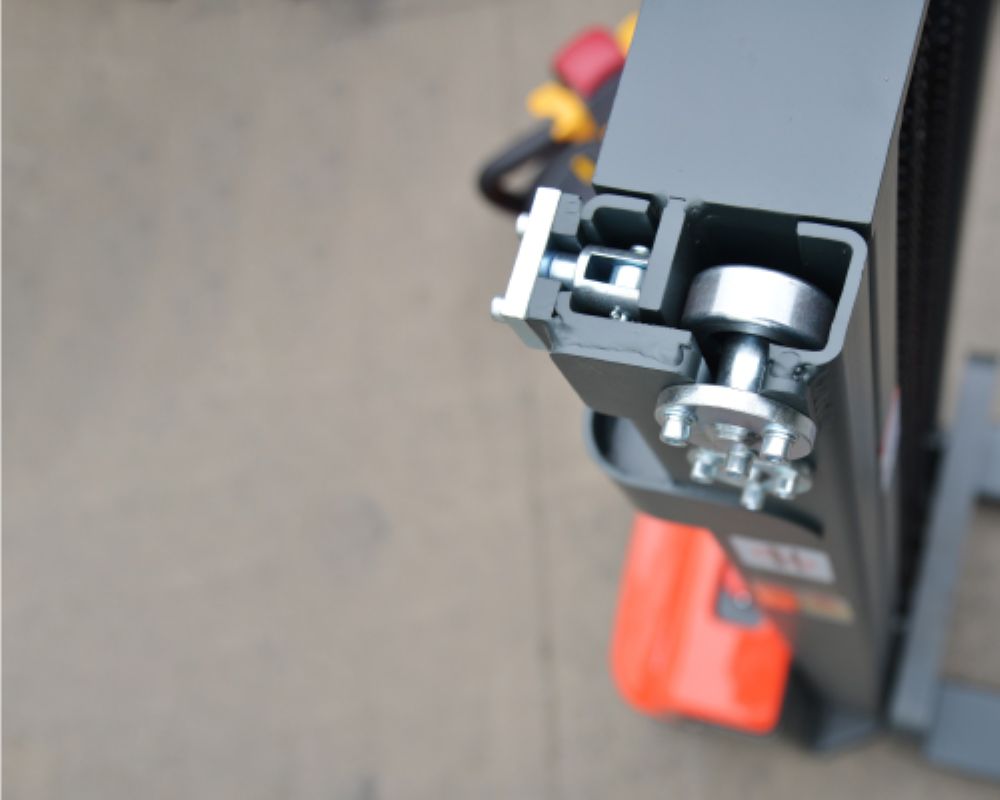

Single-Frame (or single mast / single column mast / simplex-mast / mono-mast) refers to a stacker whose lifting mast is a single vertical column (not a duplex/double-mast or triplex). In this design, the mast is fixed and a lifting carriage moves along it.
Fully Electric Stacker means that both driving (moving the stacker) and lifting (raising/lowering the forks) are powered by a battery-driven motor system no manual pumping or combustion engine.
Stand-On means the operator stands on a built-in platform when operating the stacker (as opposed to walk-behind or sit-on). This facilitates quicker pallet handling and reduces operator fatigue during long moves.

So overall, this is a compact, electrically-powered pallet stacker with a single mast and a stand-on operator platform designed for efficient indoor material handling, especially in tighter spaces or smaller warehouses.

Typical Specifications & Construction (What to Expect)

Exact specs vary by manufacturer/model but here are typical ranges and features, based on industry examples.

Parameter / Feature	Typical Range / Value / Notes
Load Capacity (Rated Load)	~ 1000 kg (1.0 ton) to ~ 1500 kg (1.5 ton), sometimes up to ~ 2000 kg depending on design.

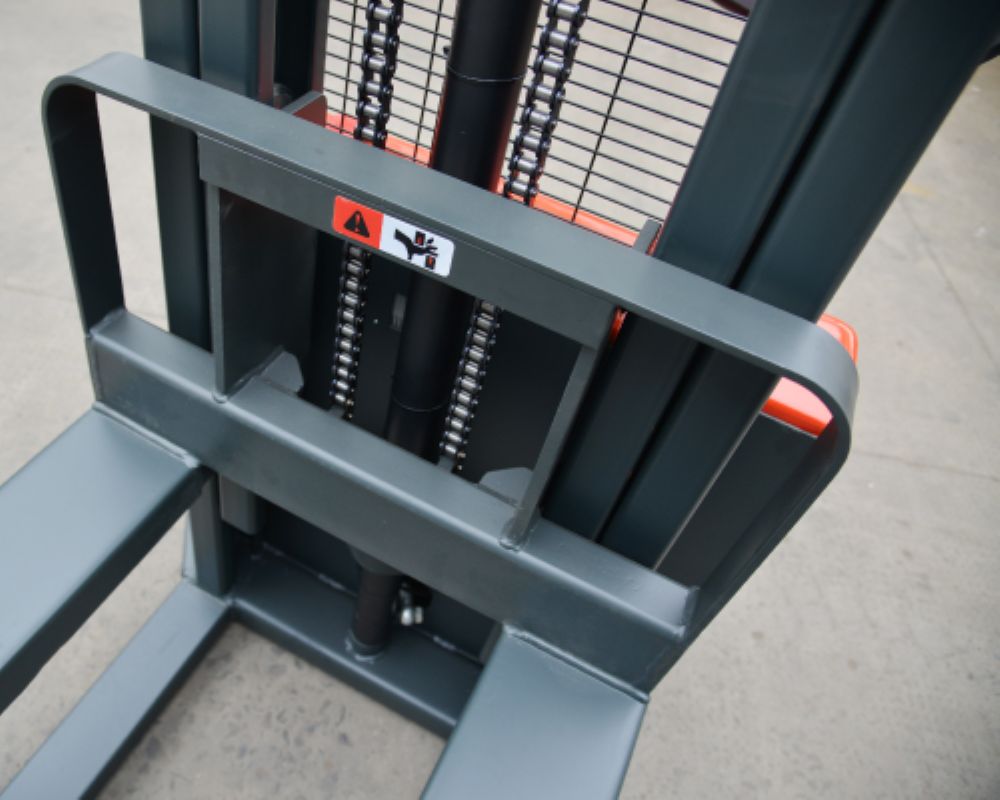

Mast Type	Single-mast / single column / simplex mast simpler and lighter than duplex/triplex.
Lift Height	Often modest common models ~ 1.6 m to ~ 3.0 m. Some may go higher depending on mast extension or design.
Fork & Frame Dimensions	Fork length often ~ 10001200 mm, width adjustable depending on pallet size; overall stacker width and chassis designed for maneuverability in narrow aisles.
Drive & Lift Power	Battery-powered electric drive motor + lift motor (AC or DC depending on model), with controls (tiller/joystick) on operator platform for lift/lower & travel.
Travel Speed / Lift Speed	Moderate: travel speeds (unloaded/loaded) and lifting/lowering speeds are calibrated for warehouse operations (not heavy-duty industrial). Eg some models show ~46 km/h travel speed.

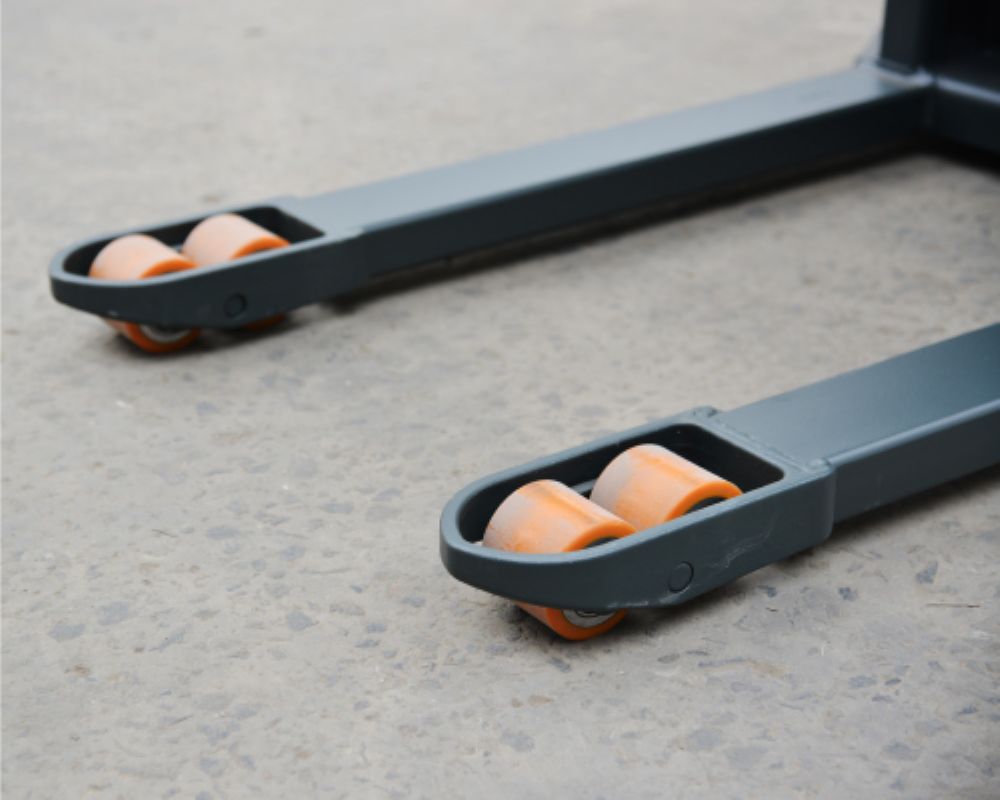

Tires / Wheels / Base	Polyurethane (PU) wheels or similar; compact chassis with decent stability; designed for indoor flooring rather than rough terrain.

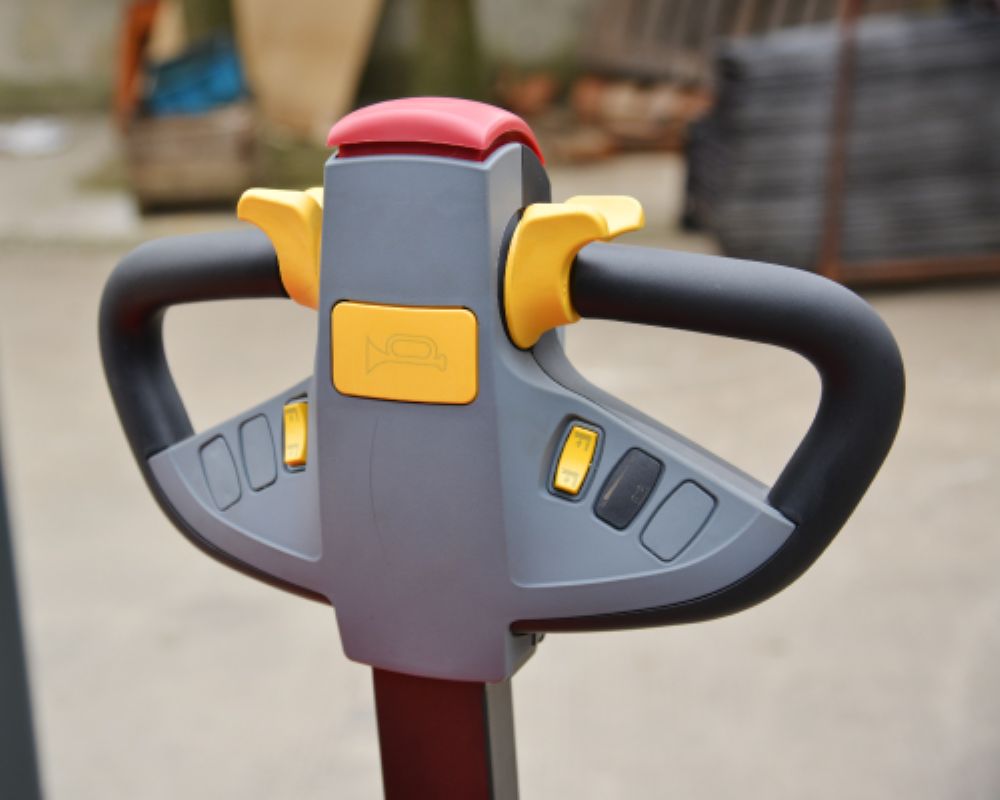

Operator Ergonomics	Stand-on platform sometimes with safety arms/backrest, tiller/joystick control, ease of entry/exit making them suitable for frequent moves over short distances.

Why single-mast The single-mast / single-frame design offers advantage of compactness, lighter weight, simpler construction, and easier maintenance.
Because it has fewer moving structural parts compared to duplex/triplex mast, its often more cost-effective and well-suited for lower-to-mid lift operations.

Key Advantages

Compact & Maneuverable: Because of single-mast design and stand-on operator platform, these stackers are especially good for tight aisles, narrow warehouses, retail storage rooms, or smaller facilities where space is at a premium.
Ease of Operation & Efficiency: Electric drive + lift reduces manual labour; standing operation and joystick/tiller controls make it easier for operators to quickly load/unload pallets improving throughput, especially for frequent moves.
Good for Light-to-Medium Loads: For warehouses or operations with lighter pallets (up to ~11.5 ton) and moderate stacking height, single-mast electric stacker fits well simpler and more economical than heavier duplex/triplex stackers.
Low Maintenance & Indoor Suitability: Electric motors, simpler mast structure, and compact design make maintenance easier; suitable for indoor warehouses, manufacturing floors, retail storerooms.

Limitations & What to Watch Out For

Limited Lift Height Capability: Because its a single-mast design, lift height is limited compared to duplex/triplex models or full forklifts. Not ideal if you need to stack at high rack levels or multi-tier storage beyond moderate heights.
Load Capacity Limits: Generally better suited for light-to-medium loads (~11.5 tons). For heavier loads or more demanding industrial use, may not suffice.
Not Ideal for Very High-density / High-reach Warehousing: For high racks, or heavy-duty continuous stacking, duplex/triplex or double-frame stackers (or forklifts) may be more appropriate.
Floor & Ground Conditions Matter: Since wheels are often PU and chassis simpler, operations are best on smooth, level warehouse floors not uneven or rough surfaces.
Battery & Charging Needs: Being electric, need charging infrastructure; battery maintenance is important. This becomes a factor if you run multiple shifts.

Typical Applications / Where Single-Frame Stand-On Electric Stackers Fit Best

Small-to-medium warehouses and storerooms with moderate rack heights.
Retail storage / distribution centers with frequent pallet movement but not heavy-duty stacking.
Indoor operations: manufacturing floors, small factories, shops where movement space is limited.
Warehouses where compactness and maneuverability matter more than high stacking capacity.
Operations prioritizing low noise, zero emissions (indoor environment), and lower maintenance overhead compared to forklifts.
